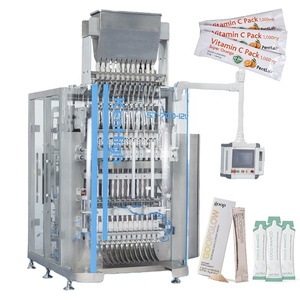

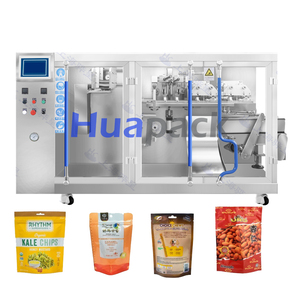

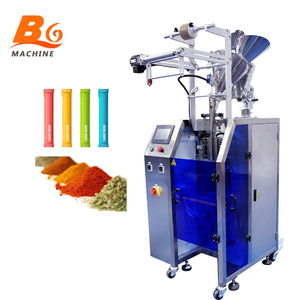

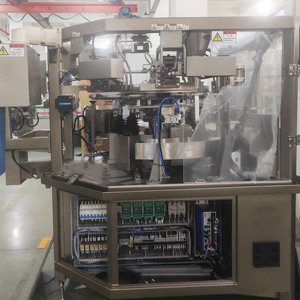

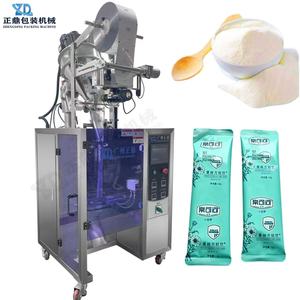

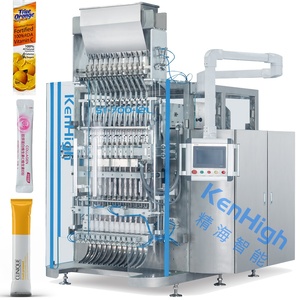

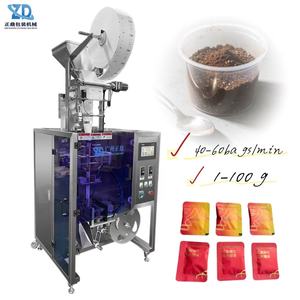

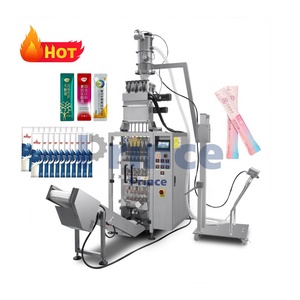

Featured Pharmaceutical Powder Sachet & Stick Pack Equipment
Engineered to conform with stringent cGMP, FDA, and EU-Annex 11 standards. High-accuracy dosing systems integrated with automated multi-lane pouching technology.
Pharmaceutical Powder Sachet Machine Procurement & Engineering Guide
In modern pharmaceutical processing, the shift toward single-dose stick packs and 4-side seal sachets has accelerated globally. Solid dosage formulations—including active pharmaceutical ingredients (APIs), pediatric antibiotics, dietary fiber enzymes, vitamin C complexes, collagen hydrolysates, and oral rehydration salts (ORS)—demand an unyielding standard of batch consistency, hermetic seal integrity, and zero cross-contamination risk.
Selecting a premier pharmaceutical powder sachet machine manufacturer requires an in-depth evaluation of mechanical dosing physics, thermographic seal validation, pneumatic hygiene, and compliance with international regulatory frameworks including cGMP, US FDA 21 CFR Part 11, and Annex 11. This comprehensive analysis details the engineering architecture, procurement decision matrices, and technological roadmaps shaping the industry.
1. Advanced Micro-Dosing Physics & Auger Feeder Engineering
Precision filling of fine pharmaceutical powders presents distinct tribological challenges: static electricity buildup, moisture-induced agglomeration, poor powder flowability (high angle of repose), and bulk density variations across supply lots. Leading machinery suppliers deploy servo-driven, direct-coupled auger screws operating in conjunction with independent agitators.
- Loss-in-Weight (LIW) Gravimetric Controls: Continuously monitor powder feed rates, auto-correcting auger rotation speeds to compensate for real-time changes in hopper bulk density.
- De-aeration & Vibration Systems: Integrated ultrasonic or pneumatic vibration mechanisms ensure uniform powder consolidation within the vertical funnels, preventing interstitial air pockets.
- Anti-Drip & Nitrogen Purging Shut-off Valves: Positive-action pneumatic cut-off nozzles stop dust migration into the horizontal sealing zones, eliminating seal contamination and ensuring leak-free hermetic seals.
2. Material Hygiene: AISI 316L Stainless Steel & CIP/SIP Ready Architecture
To eliminate cross-contamination risks and preserve drug potency, all product-contact components are manufactured from premium AISI 316L stainless steel with surface roughness polished to Ra < 0.4 µm (Electropolished finish). Non-metallic contact elements utilize FDA-compliant PTFE, PEEK, or food-grade silicone (USP Class VI compliant).
Furthermore, contemporary multi-lane vertical form-fill-seal (VFFS) systems feature tool-less dismantling of auger funnels and quick-release dosing screws, facilitating rapid Clean-in-Place (CIP) and Sterilize-in-Place (SIP) routines between batch transitions. Dust extraction hoods equipped with HEPA filtration ports maintain negative atmospheric pressure within the filling zone, maintaining compliance with ISO Class 5 cleanroom standards.
3. Technical Comparison Matrix: Sachet vs. Stick Pack Packaging Lines
| Performance Specification | Multi-Lane 4-Side Seal Sachet Line | Multi-Lane Stick Pack Machine | Single-Lane Reciprocating Sachet Machine |
|---|---|---|---|
| Lane Configuration | 4 to 12 Lanes | 6 to 12 Lanes | 1 to 2 Lanes |
| Production Output | Up to 600 sachets/min | Up to 800 sticks/min | 30 to 100 sachets/min |
| Dosing Accuracy | ± 0.5% to ± 1.0% (Servo Auger) | ± 0.5% to ± 1.0% (Servo Auger) | ± 1.0% (Volumetric/Auger) |
| Film Material Compatibility | PET/ALU/PE, Paper/ALU/PE, Laminates | PET/ALU/PE, Co-extried Films | Mono-materials, Barrier Papers |
| Seal Type | 4-Side Seal (Option: Round Corner) | Back Seal (Pillow/Fin Seal) + Top/Bottom | 3-Side / 4-Side Seal |
| cGMP & Audit Trail | 21 CFR Part 11 PLC Compliant | 21 CFR Part 11 PLC Compliant | Standard PLC / Option Part 11 |
4. Hermetic Sealing Mechanics & Thermal Integrity Controls
The barrier integrity of a pharmaceutical sachet is critical for hygroscopic formulations. Even micro-pinholes in heat-sealed seams allow atmospheric moisture ingress, compromising shelf-life stability. Premier sachet packaging machinery incorporates Dual-Zone Independent PID Temperature Controls alongside servo-actuated reciprocating sealing jaws.
Constant pressure application across the multi-lane sealing rollers guarantees uniform thermal distribution across complex multi-layer aluminum foils (e.g., PET 12µ / ALU 9µ / PE 50µ). Advanced inspection additions incorporate inline thermographic cameras and high-speed acoustic leak detection systems that automatically reject compromised sachets without stopping line operation.
Engineering Benchmarks & Operational Advantages
Built with world-class components to maximize Overall Equipment Effectiveness (OEE) while minimizing total cost of ownership (TCO).
Tier-1 Automation Hardware
Equipped with Siemens S7-1500 PLC platforms, Kollmorgen multi-axis servo drives, Festo pneumatic actuators, and SICK photoelectric sensors for seamless multi-lane synchronization.
cGMP & FDA Compliance
Designed according to sanitary cGMP guidelines. Full DQ, IQ, OQ, and PQ documentation packages provided alongside 21 CFR Part 11 audit trails for global market clearance.
Ultra High-Speed Output
Multi-lane configurations (up to 12 lanes) achieve speeds up to 800 stick packs or sachets per minute while maintaining strict dose tolerances of ±0.5%.
Tool-less Quick Format Change
Modular filling assemblies and quick-release sealing dies reduce batch turnaround times from hours to under 30 minutes, drastically elevating operational efficiency.
Integrated Vision Inspection
Inline optical cameras check batch code printing (OCR/OCV), 2D data matrix codes, slit alignment, and pouch length with automatic pneumatic reject gates.
Global Service & 2-Year Warranty
Supported by a international service network providing remote VPN diagnostic access, rapid spare parts distribution, and full on-site installation support.
Future Procurement Trends in Pharmaceutical Powder Sachet Packaging (2026–2030)
As pharmaceutical supply chains evolve toward localized manufacturing, smaller batch sizes, and sustainability, purchasing teams must future-proof their capital investments. The following core trends govern the next decade of packaging line acquisition:
1. Transition to Recyclable Mono-Material Barrier Laminates
Traditional non-recyclable PET/ALU/PE tri-laminates are being superseded by recyclable mono-material structures, such as high-barrier oriented polypropylene (OPP) or recyclable polyethylene (PE) formulations. Future-ready sachet machinery must handle narrower thermal sealing windows and lower tensile strength without sacrificing line speed or damaging barrier coatings.
2. AI-Powered Inline Quality Assurance & Predictive Maintenance
The integration of artificial intelligence at the edge is replacing traditional off-line laboratory sampling. Machine learning algorithms analyze real-time motor torque profiles, temperature fluctuations, and pressure transducer signals to detect subtle seal anomalies before defects occur. Predictive maintenance algorithms alert operators to component wear (such as auger bearing degradation or sealing jaw carbonization), eliminating unplanned downtime.
3. Integration with Downstream Cartoning & Case Packing Automation
Standalone sachet packaging is rapidly giving way to end-to-end integrated turnkey lines. Multi-lane sachet machinery is now directly coupled with high-speed robot transfer units, pick-and-place delta robots, and continuous-motion horizontal cartoners. This eliminates manual contact, guarantees strict serialisation tracking from pouch to shipping case, and ensures complete traceability.
4. Modular Multi-Dose Flexibility for Personalized Medicine
With therapies increasingly tailored to individual patient profiles, packaging equipment must support rapid dosage customization. Advanced auger systems feature micro-metered servo adjustments allowing dynamic dose changes via the HMI interface without swapping physical screws.
Frequently Asked Procurement & Engineering Questions
Expert answers to key technical questions encountered during machinery validation, vendor selection, and factory acceptance testing (FAT).
Q: How do your machines ensure accurate dosing for poorly flowing or sticky active powders?
We utilize custom-engineered servo-driven auger screws paired with independently driven continuous agitation blades within the hopper. For sticky or cohesive powders, we integrate ultrasonic hopper vibrators, polished PTFE non-stick internal coatings, and pneumatic anti-bridge massage pads to maintain constant powder head pressure above the auger flighting.
Q: What documentation is included to support pharmaceutical validation (cGMP / FDA compliance)?
Every pharmaceutical machine shipment includes a complete Validation Documentation Package: Design Qualification (DQ), Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) protocols. Additionally, we provide material mill test certificates (3.1 for stainless steel 316L), calibration certificates, FAT/SAT protocols, and 21 CFR Part 11 software validation compliance files.
Q: How is cross-contamination prevented during product changeovers on multi-lane machines?
Our machinery features a split-hopper design with tool-less quick-disconnect clamps. All product contact parts (auger screws, funnels, tubes) can be disassembled in under 10 minutes for cleaning. Integrated dust extraction manifolds draw airborne particles away from the sealing area, while cleanroom-rated IP65 washable enclosures allow comprehensive washdown protocols.
Q: Can your sachet machines handle oxygen-sensitive or highly hygroscopic pharmaceutical powders?
Yes. For oxygen- and moisture-sensitive formulations, we equip lines with multi-point Gas Flushing Systems (Nitrogen/Argon injection) directly inside the dosing funnel and sachet forming tube. This achieves residual oxygen levels below 1.0%. Furthermore, sealed environmental enclosures with controlled humidity connections can be retrofitted over the entire machine frame.
Q: What warranty and spare parts availability do you guarantee for international export clients?
We provide a comprehensive 2-Year Warranty covering mechanical, electrical, and pneumatic systems. All critical electronic components (Siemens PLC, Schneider electronics, Festo pneumatics) are standard off-the-shelf global catalog items, ensuring immediate local replacement availability worldwide. Emergency spare parts orders are dispatched via express courier within 24 hours.
Q: What laser-scoring or easy-open options are available for pharmaceutical sachets?
We offer CO2 laser slitting units that score precise tearing lines into the outer film layer without compromising the inner aluminum vapor barrier. Mechanical options include V-notch tear punches, micro-perforations, and ergonomic round-corner die cutters for enhanced patient safety and convenience.
