Industrial Liquid Filling & Sealing Machinery Catalog
Explore our flagship OEM/ODM automatic liquid, paste, and viscous sachet & bottle packaging solutions. Engineered with Tier-1 automation components for maximum uptime.
Engineering White Paper: Next-Generation OEM/ODM Liquid Filling & Sealing Architecture
In the rapidly evolving landscape of global FMCG, pharmaceutical, and cosmetic manufacturing, the demand for flexible, high-precision, and hygienic liquid packaging systems has reached unprecedented heights. Modern brand owners and contract packagers face severe operational challenges: fluctuating fluid viscosities, stringent regulatory sanitation mandates (FDA, EHEDG, cGMP), thermal degradation of barrier films, and the urgent necessity to reduce product giveaway. As a premier OEM/ODM automatic liquid filling and sealing machine manufacturer and supplier, our engineering philosophy bridges the gap between high-speed mechanical throughput and intelligent digital control.
Liquid portion packaging—encompassing single-serve sachets, 4-side seal pouches, stick packs, and rigid plastic/glass bottles—requires an intimate understanding of fluid dynamics and rheology. Whether dosing water-thin beverages, shear-sensitive cosmetic serums, particulate-laden sauces, or highly viscous honeys and gels, the stability of the volumetric dosing apparatus directly determines Overall Equipment Effectiveness (OEE). This comprehensive white paper examines the structural physics, automation frameworks, procurement evaluation metrics, and future technology trajectories defining the automatic liquid packaging machinery domain.
Advanced Fluid Mechanics & Volumetric Dosing Systems
The heart of any automatic liquid filling machine lies in its dosing pump integration. Standard gravity-fed or time-gravity fillers fail to maintain volumetric consistency when subjected to batch-to-batch viscosity variance or thermal changes. Our custom OEM/ODM packaging machinery utilizes three distinct high-precision filling technologies tailored specifically to product rheology:
Servo-Driven Piston Pumps
Designed for mid-to-high viscosity pastes such as tomato paste, honey, ketchup, and hair conditioners. Driven by Kollmorgen/Siemens absolute servo motors, these systems achieve filling accuracies up to ±0.2%, eliminating suck-back drip through anti-droop rotary valving.
Peristaltic & Magnetic Flowmeter Dosing
Ideal for shear-sensitive, sterile pharmaceutical liquids, essential oils, and perfumes. Product contact is restricted exclusively to FDA-approved sanitary tubing or electromagnetic flow channels, completely preventing cross-contamination and facilitating rapid CIP (Clean-In-Place) procedures.

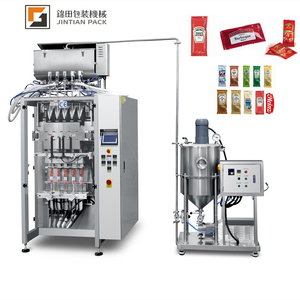

Multi-Lane Pneumatic Diaphragm Units
High-speed parallel filling systems operating across 4 to 12 lanes simultaneously. Perfect for high-volume free-flowing liquid sachets (milk, water, single-dose oral suspensions), delivering output speeds exceeding 400 sachets per minute with individual lane fine-tuning.
To resolve splashing and foaming issues common in high-speed bottling and sachet sealing lines, our machine designs incorporate Sub-Surface Diving Nozzle Architecture. During the filling cycle, the filling needle descends into the pouch or bottle opening and gradually retracts in sync with the rising liquid level. Combined with positive-cutoff shut-off nozzles and nitrogen-flush purges, film sealing jaws remain completely uncontained by liquid residue, guaranteeing a 99.9% seal integrity rate.
Technical Architecture Comparison Matrix
Selecting the optimal machine configuration requires evaluating mechanical trade-offs between linear multi-lane sachet machinery, rotary bottle packaging lines, and desktop automated dispensing units. The table below details critical engineering parameters for plant managers and procurement teams:
| Machine Architecture | Target Viscosity Range | Standard Speed (CPM) | Dosing Precision | Primary Packaging Format | Sanitation Grade |
|---|---|---|---|---|---|
| Multi-Lane Sachet (4/6/12 Lane) | 1 - 5,000 cPs (Liquid/Gel) | 120 - 500 pcs/min | ±0.3% - ±0.5% | 4-Side Seal / Stick Pack | 316L Stainless / CIP Compatible |

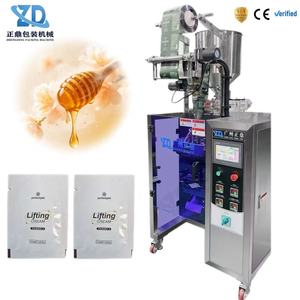

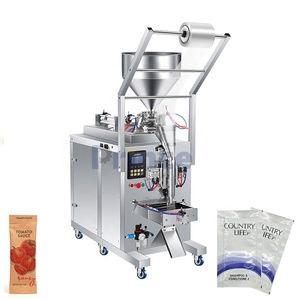

| Single-Lane Vertical VFFS Filler | 500 - 50,000 cPs (Paste/Sauce) | 30 - 80 pcs/min | ±0.2% - ±0.4% | Pillow Bag / 3-Side Seal | IP65 Washdown / cGMP |

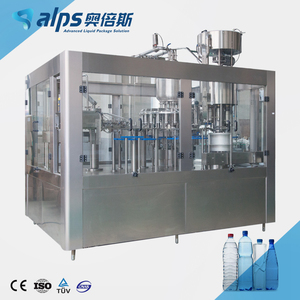

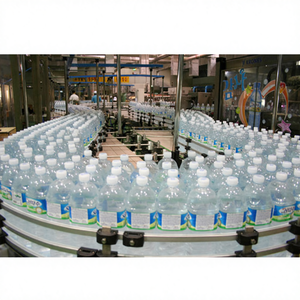

| 3-in-1 Rotary Bottle Production Line | 1 - 1,500 cPs (Water/Juice/Oil) | 2,000 - 12,000 bph | ±0.1% (Volumetric) | PET / Glass / HDPE Bottles | Class 100 Cleanroom Ready |
| 3-Axis XYZ Robotic Liquid Dispenser | 1 - 100,000 cPs (Viscous Gels) | 15 - 45 pcs/min | ±0.05% (Micro-Dose) | Vials / Syringes / Small Pouches | 304/316 Stainless Structural |
Enterprise OEM/ODM Customization Capabilities & Manufacturing Rigor
As a world-class packaging machine manufacturer with over two decades of dedicated R&D, our facility operates at the nexus of modular mechanical engineering and intelligent software integration. Unlike off-the-shelf equipment traders, our enterprise provides comprehensive Original Equipment Manufacturing (OEM) and Original Design Manufacturing (ODM) services tailored to exact client factory blueprints.
Our engineering methodology starts with finite element analysis (FEA) and 3D SolidWorks modeling to optimize frame structural rigidity, reducing vibration-induced seal failures at high operational speeds. Every custom project undergoes a rigorous six-stage verification protocol:
1. Rheological Product Profiling
Laboratory analysis of customer fluid samples to evaluate viscosity curves, surface tension, shear rates, and temperature sensitivity to select optimal pump metallurgy and seal compounds (Viton, PTFE, EPDM).
2. Custom Film & Foil Synchronization
Integration of advanced optical registration mark sensors (SICK/Banner) and servo-driven film pullers to ensure absolute graphic alignment across complex multi-layer laminate structures (ALU/PET/PE).
3. Tier-1 Hardware Standardization
We source structural and electronic components exclusively from global industry leaders: Siemens PLCs & HMI touchscreens, Festo pneumatic actuators, Schneider electrics, and SICK photoelectric sensors for seamless global spare-parts availability.
Furthermore, all machine frames are constructed from thick-wall SUS304 or SUS316L stainless steel, fully compliant with international CE, ISO 9001, and cGMP standards. Sealed electrical cabinets with positive air pressure prevent moisture ingress during intense IP65 washdown cycles, ensuring longevity in harsh food processing environments.
Future Procurement Trends: Automatic Liquid Packaging Machinery (2025–2030)
As global sustainability mandates tighten and smart manufacturing initiatives accelerate under Industry 4.0 paradigms, corporate buyers must future-proof their capital investments. When sourcing OEM/ODM liquid filling and sealing machinery, key technological shifts will govern competitive advantage over the coming decade:
1. Monomaterial & Biodegradable Packaging Compatibility
Traditional flexible sachets rely heavily on multi-layer aluminum-plastic foils that pose severe recycling challenges. Next-generation packaging machinery must handle mono-PE, mono-PP, and PLA (polylactic acid) recyclable films. These sustainable substrates exhibit extremely narrow heat-sealing thermal windows. Consequently, our modern liquid fillers incorporate Ultrasonic Sealing Technology and dynamic PID thermal controllers capable of microsecond temperature adjustments, preventing film burn-through while guaranteeing hermetic seal strength.
2. Industry 4.0 Connectivity & Predictive Maintenance
Unplanned machine downtime directly impacts bottom-line profitability. Modern automated filling lines are equipped with OPC-UA communication protocols, IoT gateway modules, and cloud analytics. Factory managers can remotely monitor real-time metrics including cycle speeds, temperature fluctuations, pneumatic pressure losses, and component wear indicators. Predictive algorithms alert maintenance teams before mechanical failure occurs, enabling zero-unplanned-downtime operation.
3. Toolless Rapid Changeover & Modular Scalability
With market demand shifting toward short-run production and stock-keeping unit (SKU) proliferation, long downtime for size changeovers is unacceptable. Our ODM machinery utilizes quick-release sanitary clamps, magnetic nozzle attachments, and recipe-driven HMI presets. Operators can complete fill-volume and pouch-length adjustments in under 15 minutes without specialized hand tools.
B2B Buyer's Guide: Evaluating Liquid Filling & Sealing Suppliers
Procuring heavy industrial packaging machinery represents a multi-decade capital commitment. To assist procurement directors, plant engineers, and contract manufacturing leaders in vendor selection, we recommend auditing prospective OEM/ODM partners across four core competencies:
Total Cost of Ownership (TCO)
Evaluate not only initial machine purchase price, but long-term energy consumption, spare parts pricing, yield efficiency (scrap rate < 0.5%), and maintenance labor costs over a 10-year operational lifecycle.
Factory Acceptance Testing (FAT)
Ensure your supplier conducts comprehensive FAT protocol testing using your actual liquid product and packaging film under full-speed production conditions prior to containerized shipment.
Global Technical Support
Verify the vendor offers 24/7 remote diagnostic capabilities via secure VPN connections, along with multi-lingual field service engineers available for on-site commissioning, operator training, and SAT (Site Acceptance Testing).
Frequently Asked Questions (FAQ)
In-depth technical answers regarding custom machine design, fluid handling limitations, maintenance protocols, and international shipping standards.
Request Custom Technical Proposal & Product Catalog
Partner with an industry-leading OEM/ODM manufacturer. Contact our senior automation engineering team to discuss fluid specifications, packaging film compatibility, line layouts, and quotation pricing.
